Entwicklung Bluetooth Sniffer Tool RP-SMA zum SMA-Adapter für Ubertooth One

Description

2.4 GHz Wireless Development Bluetooth Sniffer BTLE Bluetooth protocol analysis open source Test/Research Ubertooth One

s:

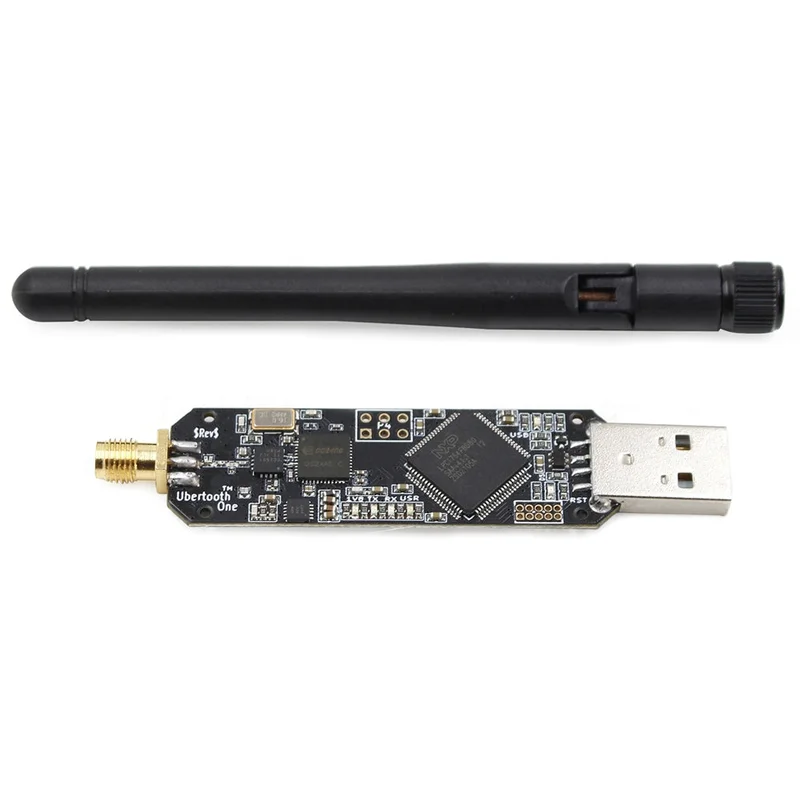

The Ubertooth One is an open source 2.4 GHz wireless development platform suitable for Bluetooth experimentation. Based on the powerful LPC175x ARM Cortex-M3 microcontroller with full-speed USB 2.0, the Ubertooth One is a great way to develop custom Class 1 comparable Bluetooth devices. The entire board is only two and a half inches long with a USB-A connector at one end and an RP-SMA connector at the other.
One thing that sets the Ubertooth apart from other Bluetooth development platforms is that it’s capable of not only sending and receiving 2.4 GHz signals, but can also operate in monitor mode, monitoring Bluetooth traffic in real-time. This operating mode has been present in low-cost WiFi modules for years and has found myriad uses in research, development and security auditing but no such solution existed for the Bluetooth standard until now. Also, because it’s a fully open-source platform (software and hardware), the schematics and code are readily available for all of your needs.

Features:
2.4 GHz Transmit and Receive
Transmit power and receive sensitivity comparable to a Class 1 Bluetooth device
Standard Cortex Debug Connector (10-pin 50-mil JTAG)
In-System Programming (ISP) Serial Connecto
Expansion connector intended for inter-Ubertooth communication or other future uses
Six Indicator LEDs
2.4 GHz Duck Antenna Included
Dimensions: 61.75mm x 19mm (2.43″ x 0.75″)

Note:In order to open the schematic and board design files found in the source package, you will need to downloadKiCad, an open source electronic design automation software package.

Specifications:
Model: Ubertooth One
: Open Source Testing and Research Tool, Monitoring and Development Platform
Frequency Band: 2.4GHz
Interface: USB
Included Antenna: Kushan Wavelink KSW-170720245
: Dual-Band WiFi Antenna

Package Included:
1 * 2.4 GHz Wireless Development Bluetooth Sniffer
